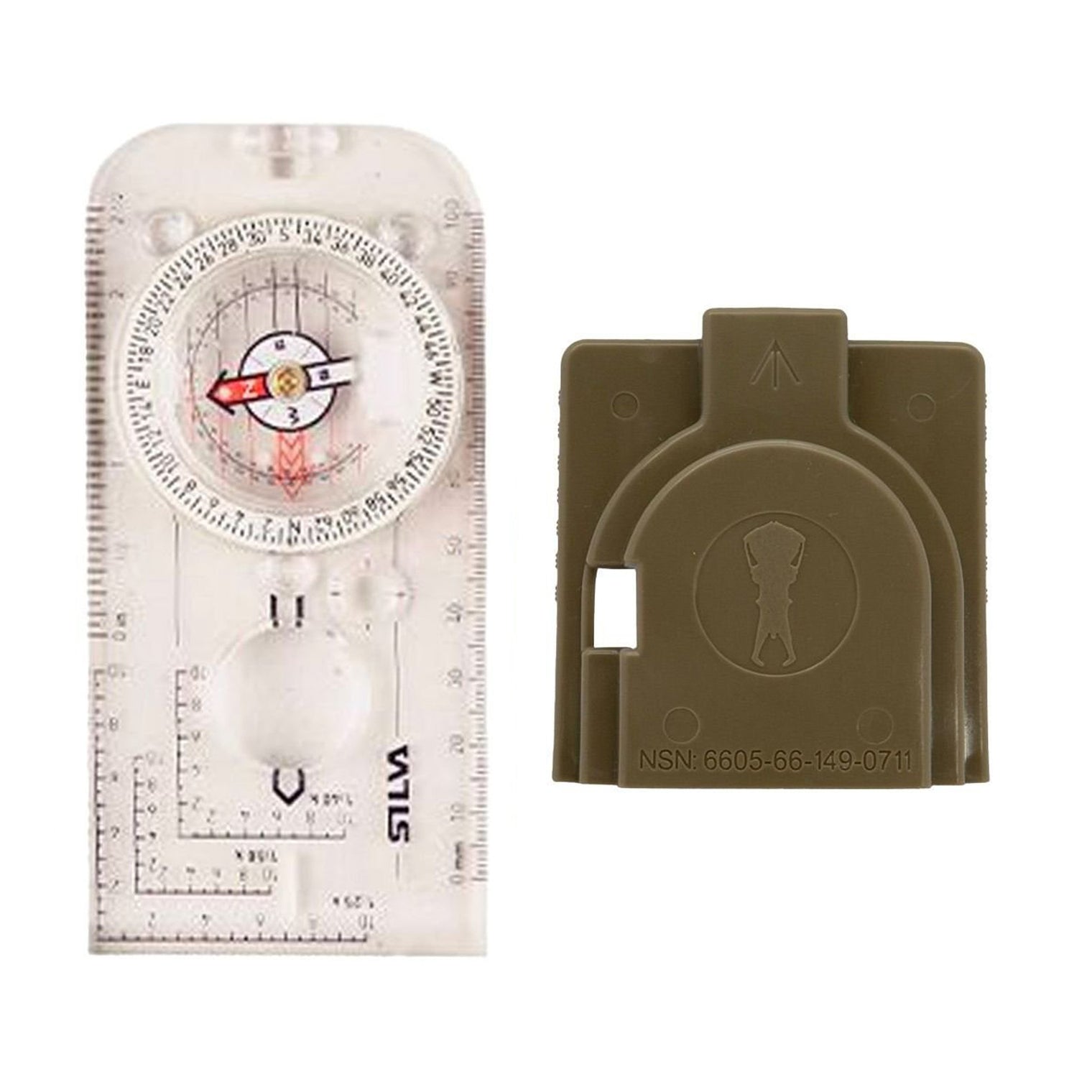

Silva 55-6400/360 MS Mils Compass Bundle

The Silva 55-6400/360 MS Mils Compass Bundle combines a precision military sighting compass with two Platatac protective covers, providing a complete navigation package for field use, artillery, target acquisition and command post applications.

Replacing the NSN-listed Silva 54/6400B, the Silva 55 features clearer, more distinct markings for faster reading in demanding conditions. Its combined optical sighting system and SILVA 1-2-3 SYSTEM baseplate allow accurate bearings to be taken while retaining the versatility required for conventional map navigation.

The sighting scale is graduated in both 6400 mils and 360 degrees, while the main graduation ring is marked in 6400 mils. Luminous markings and a luminous graduation ring support low-light navigation for up to four hours after activation by daylight or a flashlight.

The included flexible scale lanyard provides 1:25,000 and 1:50,000 map scales and can be laid directly along a route for quick distance measurement. A slope card is also supplied for assessing terrain gradient, route difficulty and avalanche risk.

To protect the compass in storage and transit, the bundle includes both a Platatac Compass Cover in Terra Firma Pattern and a Platatac Hard Compass Cover.

Bundle Includes

• Silva 55-6400/360 MS Mils Compass
• Platatac Compass Cover in Terra Firma
• Platatac Hard Compass Cover

Important

This model is balanced for Magnetic South and Southern Hemisphere use.

Northern Hemisphere models and other magnetic balancing options are available by quotation for government units. Contact us for further information.

• Type of compass: SILVA 1-2-3 System, baseplate compass
• Lensatic precision sighting system
• Liquid-filled capsule
• Sapphire jewel bearing
• High-quality steel needle
• Hardened steel pivot
• Magnifying lens: Yes
• Declination adjustment: No
• Clinometer: No
• Luminous markings: Yes
• Luminous graduation ring: Yes
• Illumination / active time after activation in light: 4 hours
• Silicon friction feet: Yes
• Patented red/black N/S lines in capsule
• GPS scales
• Scale lanyard: 1:25, 1:50
• Slope card

• Graduation Outer Ring: 6400
• Sighting Scale: 6400/360
• Resolution (degrees / mils) Outer Ring: - / 50
• Precision Sighting Scale: 1 / 20
• Measuring Scales Base Plate: mm, inch
• UTM Position Plotting Scales (Romer Scales): 1:25k, 1:50k, 1:40k
• Settling Time from 90° Angle within ±3°: 4 sec
• Settling Time from 90° Angle to Complete Rest: 6 sec
• Accuracy: ±0.5 degree (8.9 mils)
• Water Resistance: Waterproof
• Altitude Use: 5000m @ -15°C
• Impact Resistance: 30g in X/Y/Z directions and free fall from 1.5m into gravel
• Temperature Operating Range: -30°C to +60°C
• Material: Acrylic
• Size (mm): 126 x 60 x 16
• Weight: 39 grams
